Triol TM01-18

Distinctive benefits

Investment Savings

Cost savings during commissioning and well operation

Increased production through quality and timely solutions

Increased service life of submersible equipment

Ensuring the safety of personnel at wells site

About product

Reliable and profitable solution

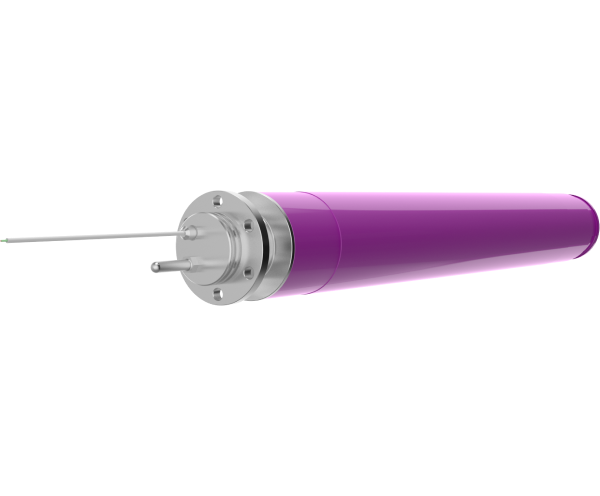

Downhole Measuring System Triol TM01-18 is a high-temperature, reliable and profitable solution for systems working with hot fluids up to 175°C (347°F), where it’s necessary to collect, process, display and transfer actual parameters of the well and submersible equipment, with a pressure in the equipment suspension zone up to 40 MPa (5800psi).

Distinctive benefits of Downhole Measuring System Triol TM01–18:

Investment Savings, Cost savings during commissioning and well operation, Increased production through quality and timely solutions, Increased service life of submersible equipment, Ensuring the safety of personnel at wells site.

Displaying and processing of

  • pump discharge pressure
  • pump discharge temperature
  • submersible motor oil temperature or the temperature of the motor stator winding
  • ESM vibration acceleration in the X, Y and Z axis
  • insulation resistance in the circuit "Step-up transformer - submersible cable - ESM"

Specifications

Key parameters

Ambient temperature Up to 175 °С (347°F)
ESM oil temperature / ESM stator winding From 0 to +200/250 °С (from +32 to +392/482 °F) ±2°С, (±3,6°F), resolution 0,01°С (0,1°F)
Pump intake pressure 0-40 MPa (0-5800 psi) ±0,1 MPa (±15 psi), resolution 0,001 MPa (0,1 psi)
Axis vibration x, y, z 0-30 m/s² (0-3,06 g) ±5 %, resolution 0,1 m/s² (0.001 g)
Insulation resistance "Step-up transformer – ESM power line" 1000-10000 kΩ ±10 %, resolution 1 kΩ
Operation mode (duration) Extended
Data update time 50 s
Controller communication protocol RS-232, RS-485 Modbus RTU
Communication protocol Step-up transformer / Submersible unit Closed
Communication protocol Surface unit / VSD Triol / Transfer


Additional Options

Options

Digital Module TM01 16 digital inputs /8 digital outputs
Analog Module TM01 8 digital outputs
Adam TM01 Adapter RS485/422/232 Ethernet
Triol High-Voltage Choke IP20 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol High-Voltage Choke IP56 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol Test unit TM01 454х324х171mm, 11 kg, IP67, from -40 to +55°С (from -40 °F to +131 °F), 4h
Triol Test unit pressure TM01 454х324х171mm, 9 kg, IP67, from -20 to +60°С (from -4 °F to +140 °F)
SCP Modem Modem type depends on the region of implementation
